JDY Performance STG2 BMW S58 3.0TG8X Pistons by Diamond

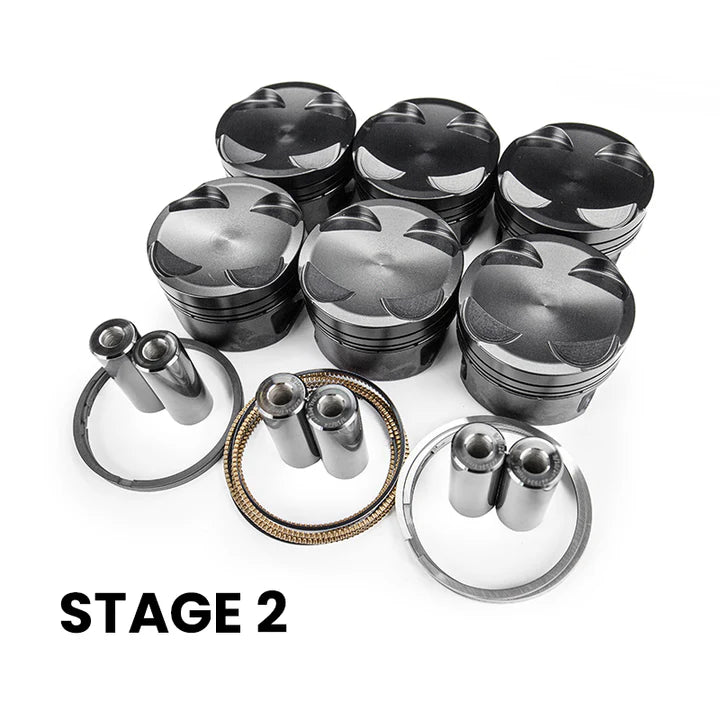

JDY BMW S58 Stage 2 Forged Pistons

Built for extreme horsepower and racing durability. JDY Stage 2 Pistons are precision‑engineered for the BMW S58 platform, delivering unmatched strength, efficiency, and reliability under the most demanding conditions. Designed for enthusiasts pushing beyond factory limits, these pistons support builds up to 1800+ HP while maintaining OEM‑grade compatibility.

🔧 Key Features

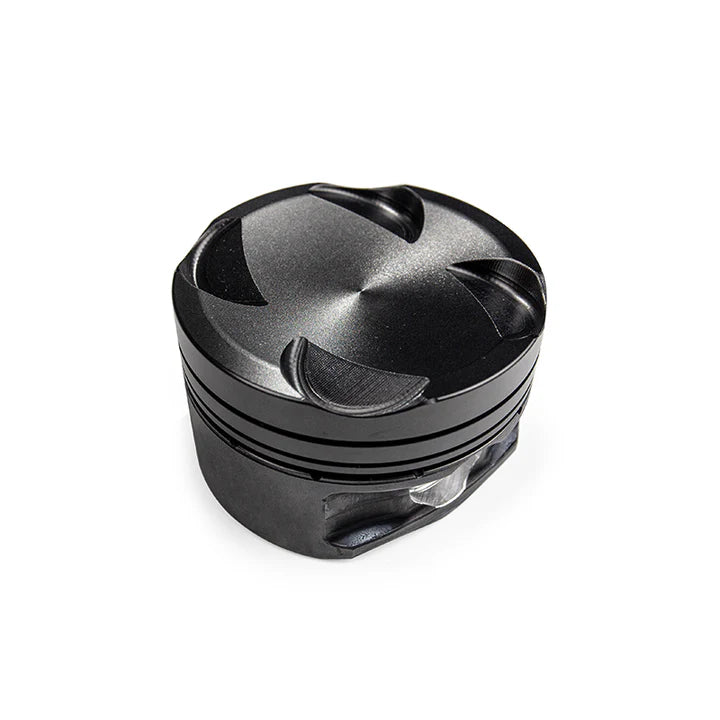

• Precision Piston Design

  • Stock bore size: 84mm

  • Compression ratio: 9.2:1

  • Forged from billet 2618 alloy for maximum strength and lightweight performance

  • Stage 1 option (up to 1500 HP) and Stage 2 option (up to 1800 HP) available

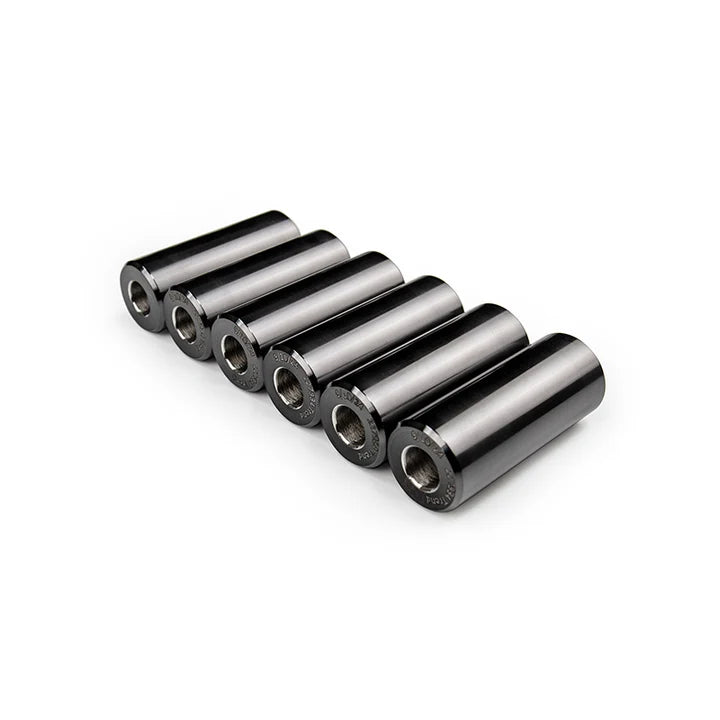

• DLC‑Coated Wrist Pins

  • H13 super‑hard alloy, 23mm diameter, 0.225" wall thickness

  • Diamond‑Like Carbon coating reduces friction, improves wear resistance, and withstands extreme heat

• High‑Performance Piston Rings

  • Equipped with Total Seal rings for superior sealing, oil control, and resistance to high combustion pressures

  • Redesigned grooves for improved heat management and durability

• Optimized Valve Pocket Design

  • Custom pockets accommodate Kelford Stage 1, 2, and 3 camshafts

  • Allows greater valve lift and improved volumetric efficiency without interference

• Stage 2 Enhancements

  • Hard anodized finish for increased hardness, wear resistance, and corrosion protection

  • Supports extreme racing applications with 1800+ HP capability

📊 Technical Specifications

• Finished bore size: 3.307"

• Compression ratio: 9.2:1

• Wrist pin diameter: 0.905"

• Wrist pin length: 2.250"

JDY Stage 2 Pistons are the ultimate choice for BMW S58 builders who demand uncompromising strength, efficiency, and performance — whether on the street or the track.
