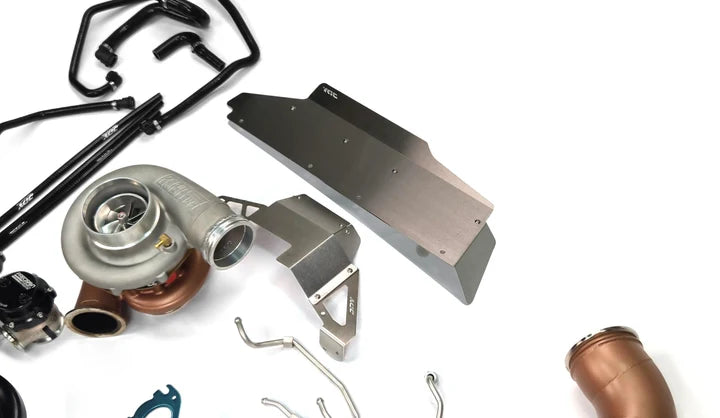

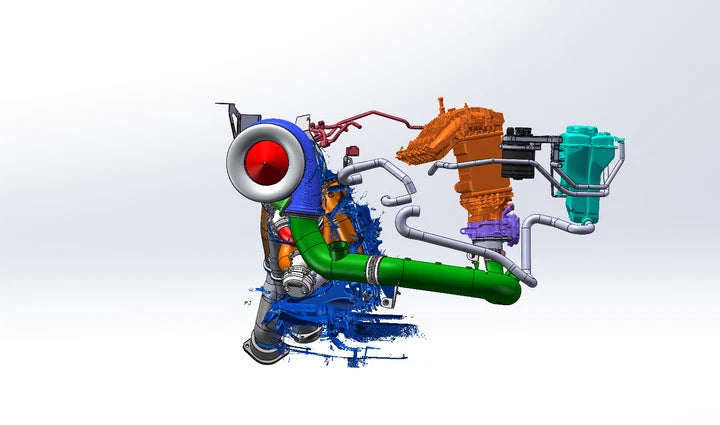

JDY BMW G8X Single Turbo Kit M2/M3/M4

🔧 Key Features & Technical Highlights

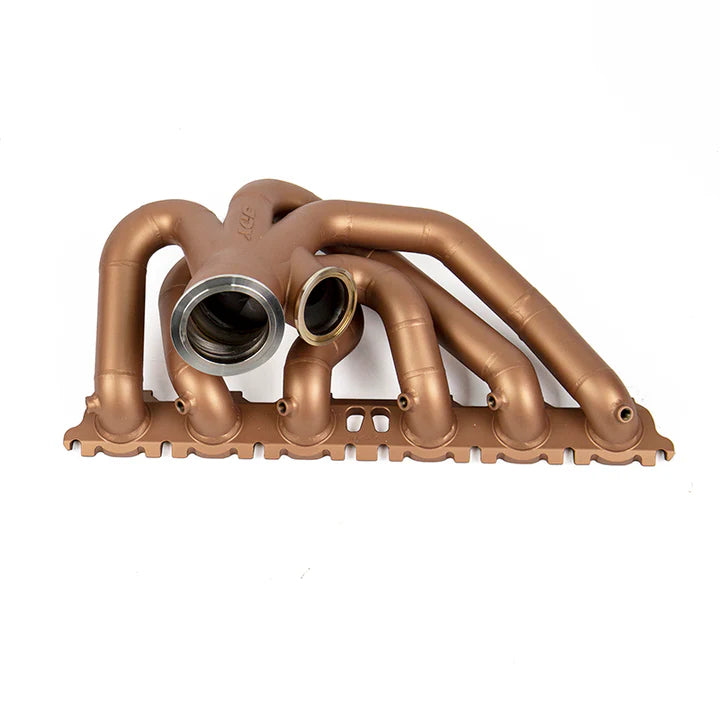

Exhaust Manifold (316 Stainless Steel)

• CNC‑machined one‑piece 6‑port flange

• 42mm OD / 36mm ID tubing, 3mm wall thickness

• Fronius TIG‑welded with dual‑sided argon shielding

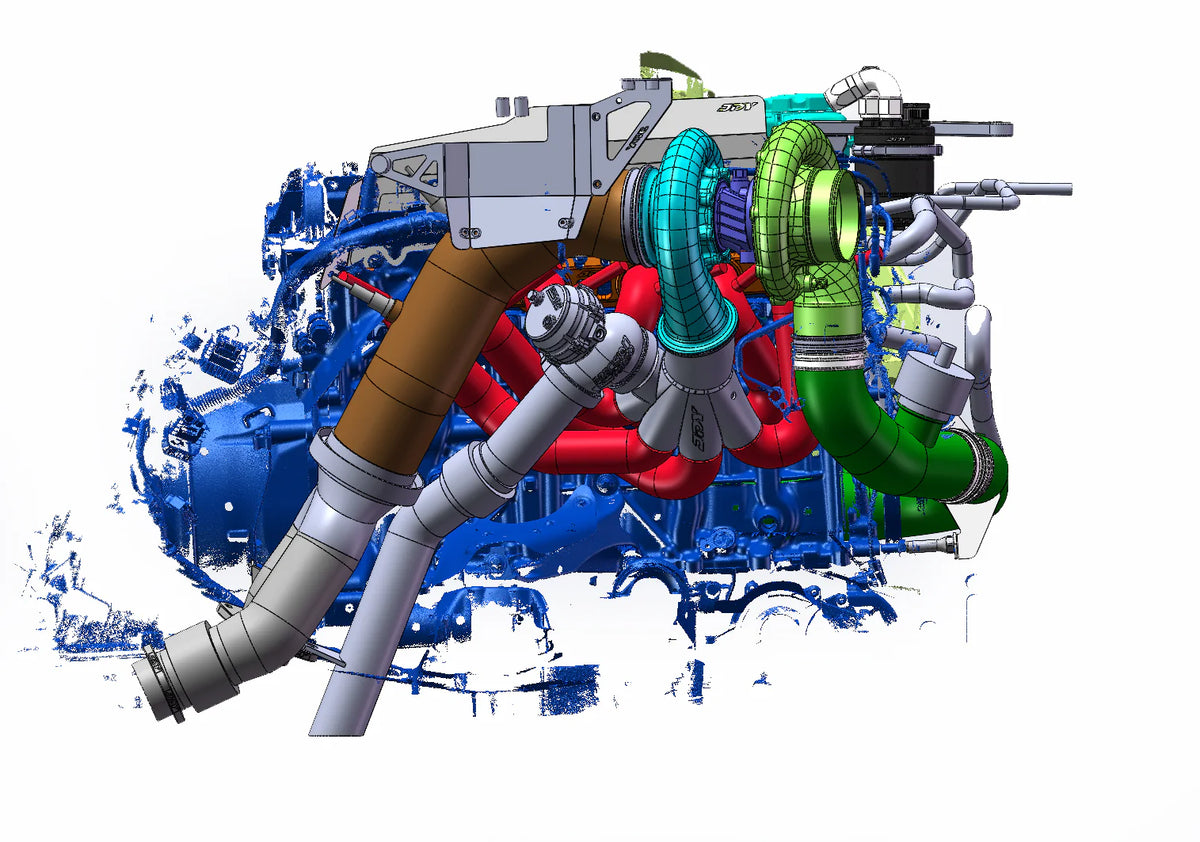

• ANSYS fluid dynamics tested for optimized gas flow

Turbo Compatibility

• Supports Precision Turbo T4 (6670/6870/7275/7675)

• Compatible with 6870, 7275, 7675, 7480 Sportsman, 8085 Sportsman, 8385 Sportsman

Exhaust Sealing & Hardware

• Solid copper manifold gasket (superior to OEM MLS)

• Reinforced V‑band clamps for extreme durability

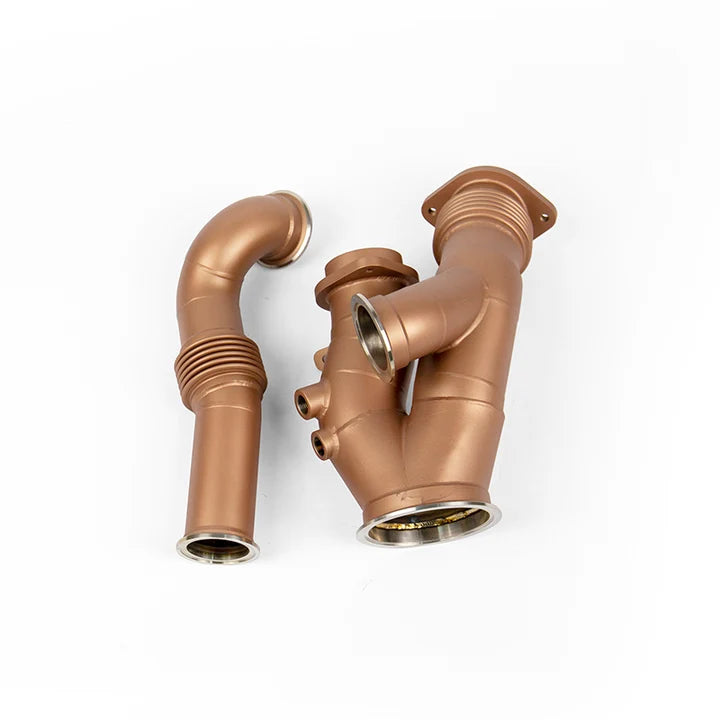

Downpipe (304 Stainless Steel)

• 4‑inch OD, 2mm wall, dual‑section A/B design

• Fully TIG‑welded with dual‑sided argon shielding

• OEM & aftermarket mid‑pipe compatibility

• Extra O2 bung for wideband sensors

Wastegate & Boost Control

• Dual Precision Turbo 46mm dual‑port wastegates (LHD version)

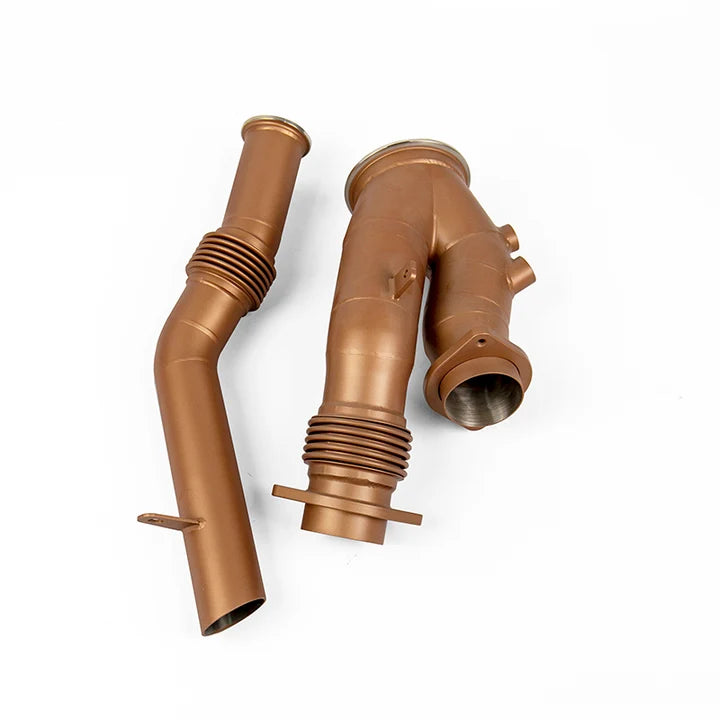

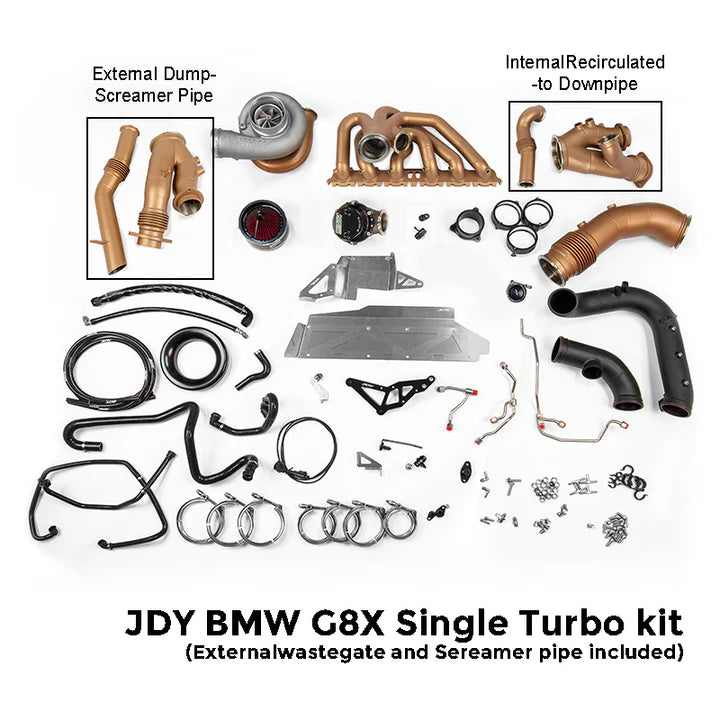

• Internal or external dump routing (screamer pipe option)

Oil & Water Lines

• AN4 stainless feed line with PTFE core

• AN10 PTFE return line with anodized aluminum fittings

• Fire‑resistant thermal sleeves for all lines

Coolant Relocation & Catch Can Integration

• CNC‑machined relocation bracket with JDY catch can compatibility

• Includes brackets, hoses, bolts, quick‑connects, and adapters

Charge Piping & Clamps

• 3‑inch aluminum charge pipes, TIG‑welded, hard‑anodized

• JDY Fast‑Release Wiggins clamps (no silicone couplers)

• Billet throttle body flange replaces OEM plastic

Intake System

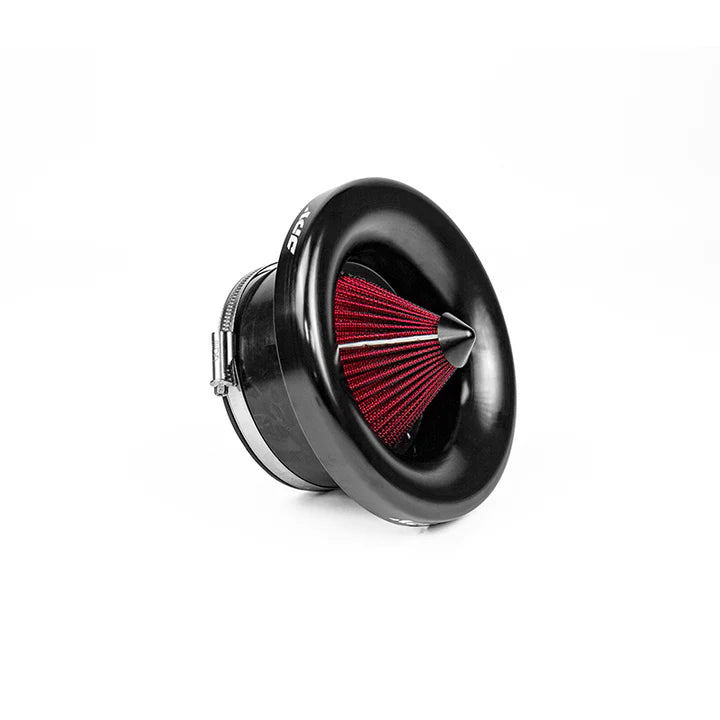

• CNC‑machined velocity stack for optimized airflow

• Performance cotton filter included

Heat Management

• Custom 304 stainless heat shields for valve cover, firewall, and wiring

• Ceramic thermal barrier coating on manifold, downpipe, and dump pipes

Fuel System Safety Upgrade

• JDY proprietary high‑pressure fuel line reroute (350 bar rated, tested at 450 bar)

• Eliminates vapor lock risk — exclusive JDY safety feature

📦 Materials Overview

• Exhaust Manifold: 316 Stainless Steel

• Downpipe: 304 Stainless Steel

• Charge Piping: Hard‑Anodized Aluminum Alloy

• Oil & Water Lines: PTFE Core, Stainless Braiding, Aluminum AN Fittings

• Coolant Hoses: Reinforced Silicone with Braided Mesh

• Heat Shields: 304 Stainless Steel

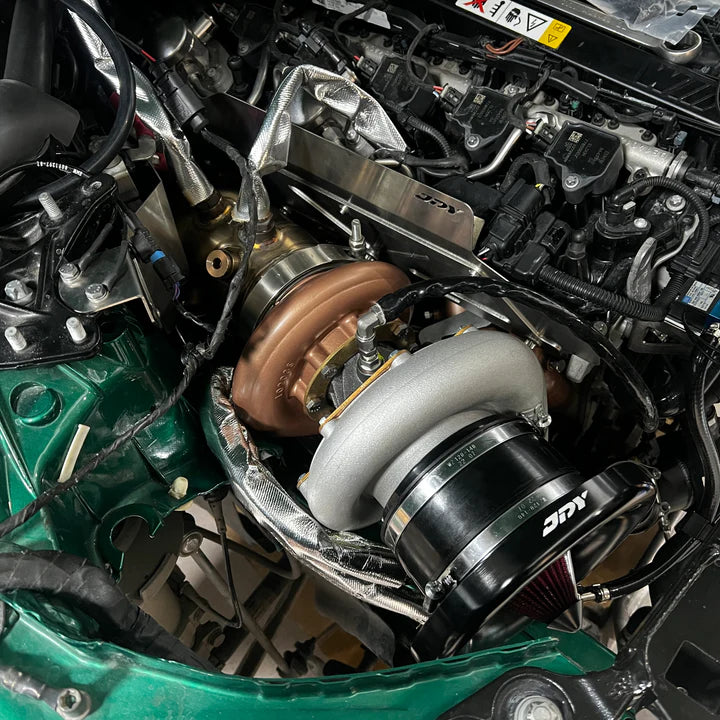

JDY’s Turbo Kit is the ultimate upgrade for BMW S58 engines — engineered for extreme performance, precision fitment, and long‑term reliability.
